Frequency Converters
|
Product |
Key-Features |
Datasheet |
IF Frequency Converters
|
Satellite Up- / Down-
Converter |
Single, Dual and Triple Band or
Dual Channel IF Converter within 19" 1RU or IP67 Outdoor Housing, S, C, X,
Ku, K, Ka Band, 70/140 MHz Switchable Option, Low Power Fanless Design,
High Stability, Low Phase Noise
|
492 KB |

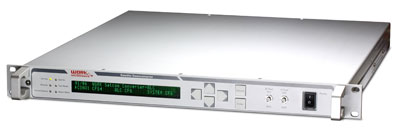

Inmarsat / Narrowband Down-
Converter
|
Inmarsat L-Band to 70/140 MHz,
Dual Channel with ALC Option within 19" 1RU or IP67 Outdoor Housing, Low
Power Fanless Design, High Stability, Low Phase Noise
|
224 KB |
Block Converters
|
Synthesized Block Up- / Down-
Converter |
S, C, X, Ku, K-, Ka-Band, within
19" 1RU or IP67 Outdoor Housing, Low Power Fanless Design, High Stability,
Low Phase Noise
|
464 KB |
Block Up-Converter Module(mini-buc) |
Single, Dual, Tri Band
Block Up- Converter Module, L Band to C, X, Ku, K Band, High Stability,
Low Phase Noise, Compact Design
|
540 KB |
|
Fixed Frequency Block
Converter
|
C, X, Ku, K Band, within 19" 1RU
or IP67 Outdoor Housing, Low Power Fanless Design, High Stability, Low
Phase Noise
|
496 KB |
Monopuls Tracking Converters
|
Dual
Channel Shared Oscillator Converter
|
For Monopuls Tracking Receivers,
High Inter-Channel Phase Stability, within 19" 1RU or IP67 Outdoor
Housing, Low Power Fanless Design, Low Phase Noise
|
284 KB |
|
|
|
|
|
All Units are also available as IP67 Outdoor
Units
|
264 KB |
|
Full Catalogue, Volume 1 - Frequency Converters
and Associated Products |
4,4 MB |
| Satellite Converters (PDF document) |
Single, Dual and Triple Band Upconverters /Downconverters |
| Indoor Unit |
S, C, X, Ku, K, Ka Band |
| Outdoor Unit |
S, C, X, Ku, K, Ka Band |
| Modules |
S, C, X, Ku, K, Ka Band |
| |
| Special Downconverters |
| S-Band Downconverter |
2.300~2.900 MHz to 700~750 MHz |
| Synthesizd Block Downconverter |
10.70~12.75 GHz to 950~1.500 MHz |
| Blockdownconverters |
3.5~3.7 GHz to 1.454~1.654 MHz |
| INMARSAT Downconverter |
1.525,0~1.559,0 MHz and / or 1.626,5~1.660,5 MHz to 140 +/- 17 MHz |
| VHF to IF Downconverter |
80~200 MHz to 0~30 MHz |
| |
| Satellite DVB Modulator + Upconverter |
| Indoor Unit |
S, C, X, Ku, K Band |
| Outdoor Unit |
S, C, X, Ku, K Band |
| |
| Automatic Level Control with Filter Amplifier (ALC) |
| Indoor Unit / Add On |
-5~+10 dBm (140 +/- 17 or +/- 27 MHz) |
| |
| Satellite DVB Modulator 70/140 MHz or L Band Output |
| Indoor Unit |
70/140 MHz or L Band Output |
| Outdoor Unit |
70/140 MHz or L Band Output |
| |
| Block Upconverters |
| mini-buc® Single Band Block Upconverters |
L Band to C, X, Ku Band |
| mini-buc® Dual Band Block Upconverters |
L Band to C, X, Ku Band |
| mini-buc® Tri Band Block Upconverters |
L Band to C, X, Ku Band |
| Outdoor Unit Single-, Dual- & Triple-Band |
L Band to C, X, Ku Band |
| |
| Redundancy Switches |
| Indoor Unit |
1:1 Redundancy Switch / N:1 Redundancy Switch |
| Outdoor Unit |
1:1 Redundancy Switch / 2:1 Redundancy Switch |
| |
| Remote Control Units |
| Indoor Unit |
|
| Uplink Power Control |
|
|
